Description
1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.

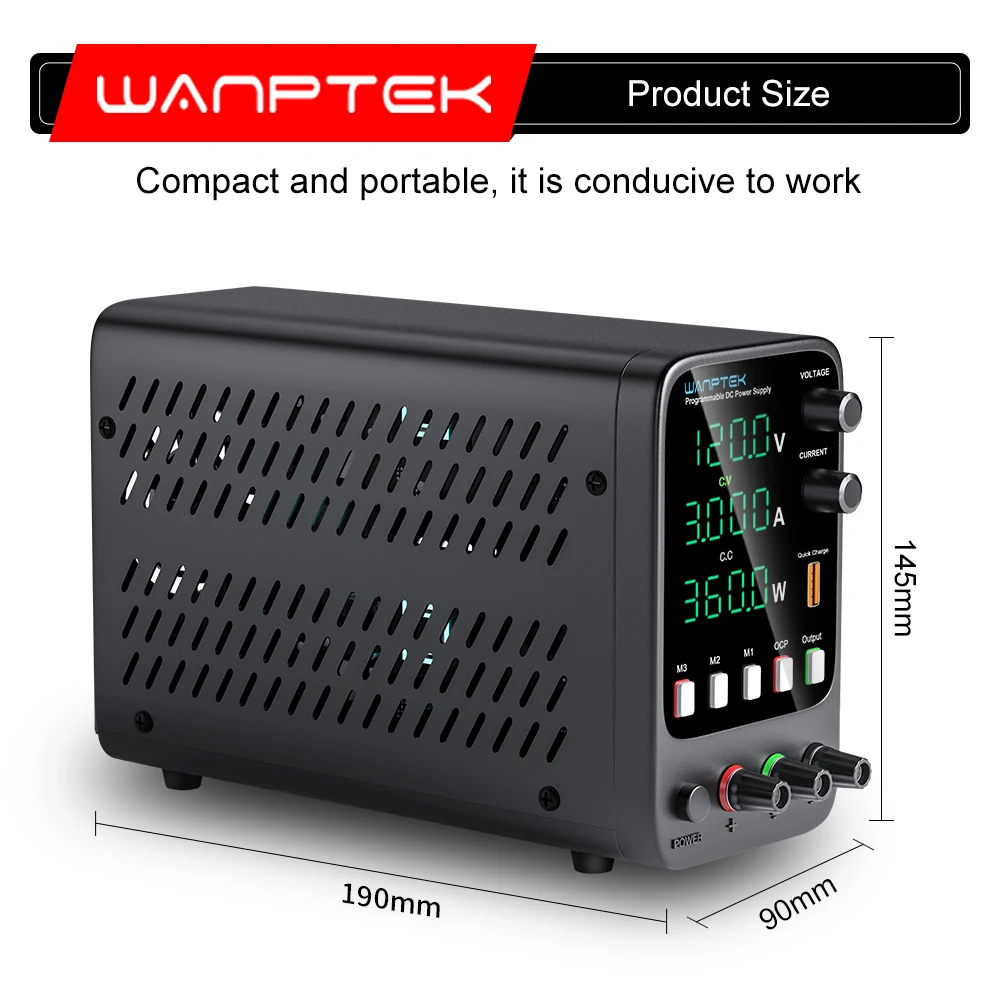

2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.

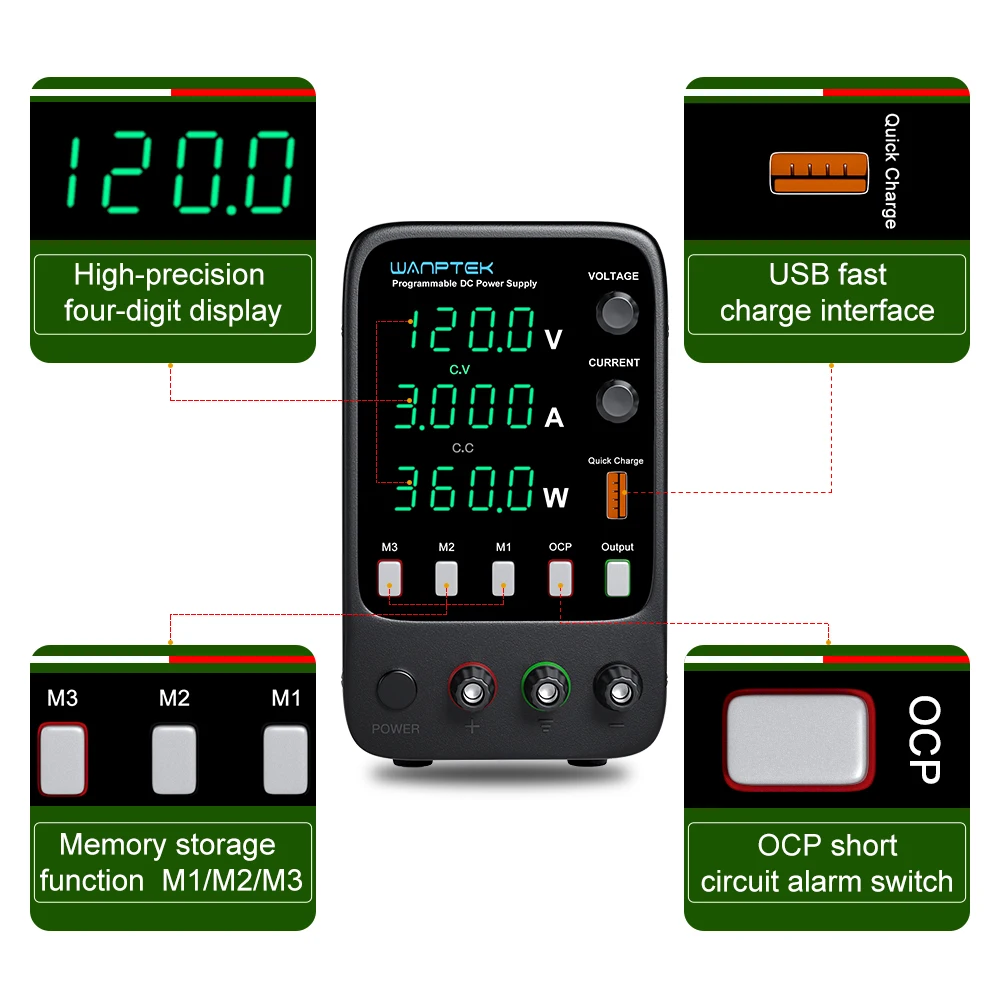

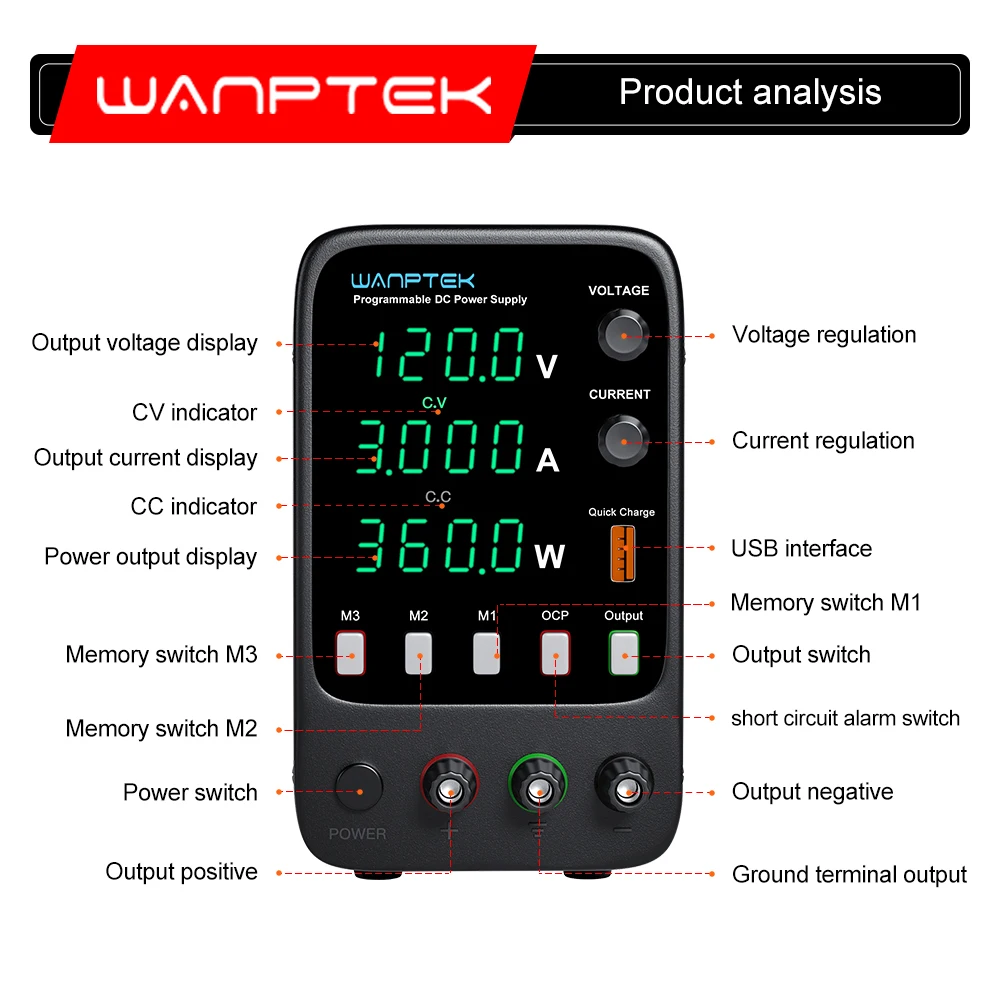

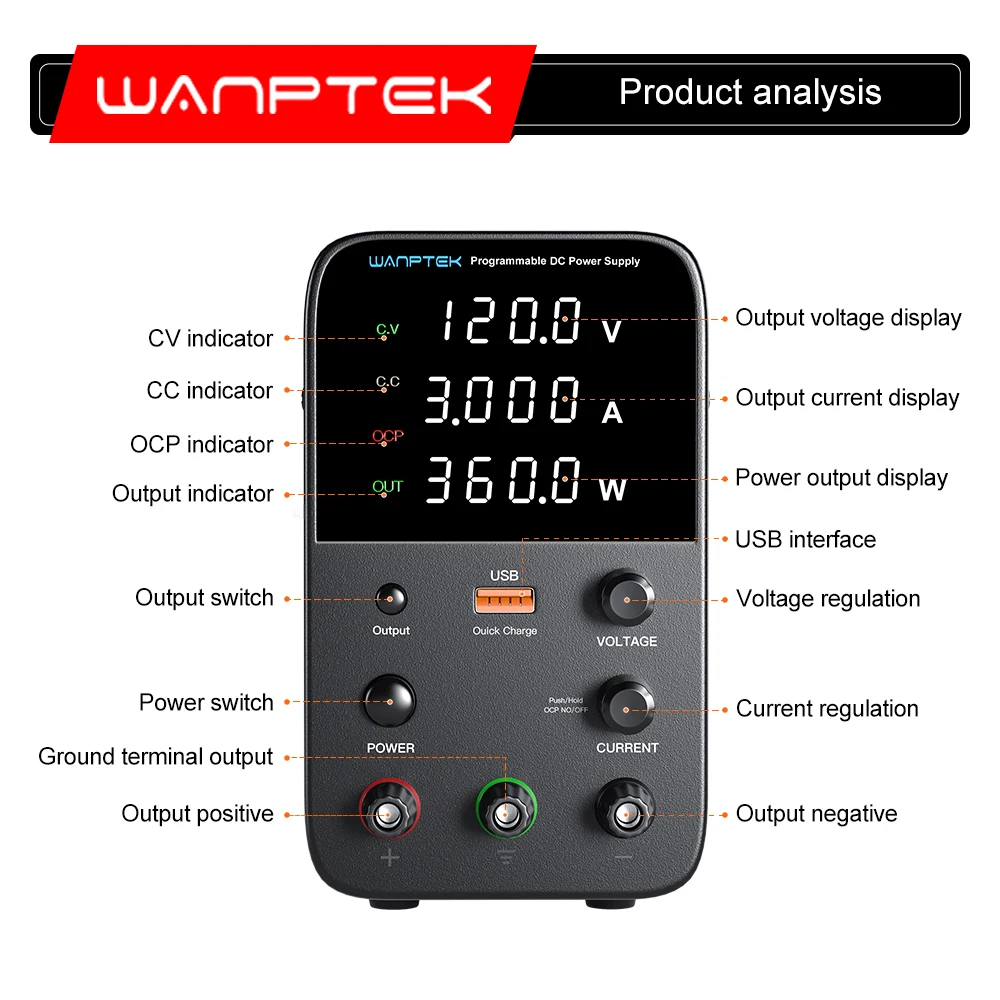

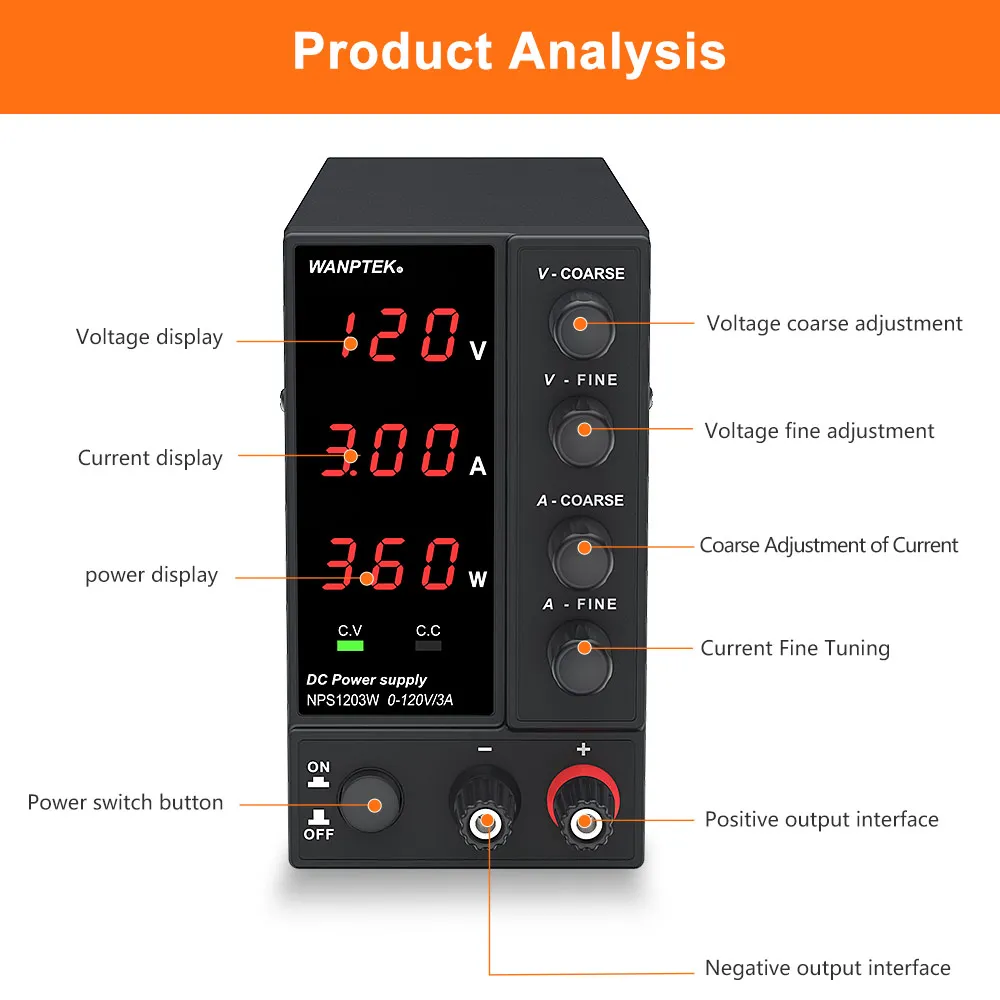

5.Three LED display of voltage, current and power, high precision.

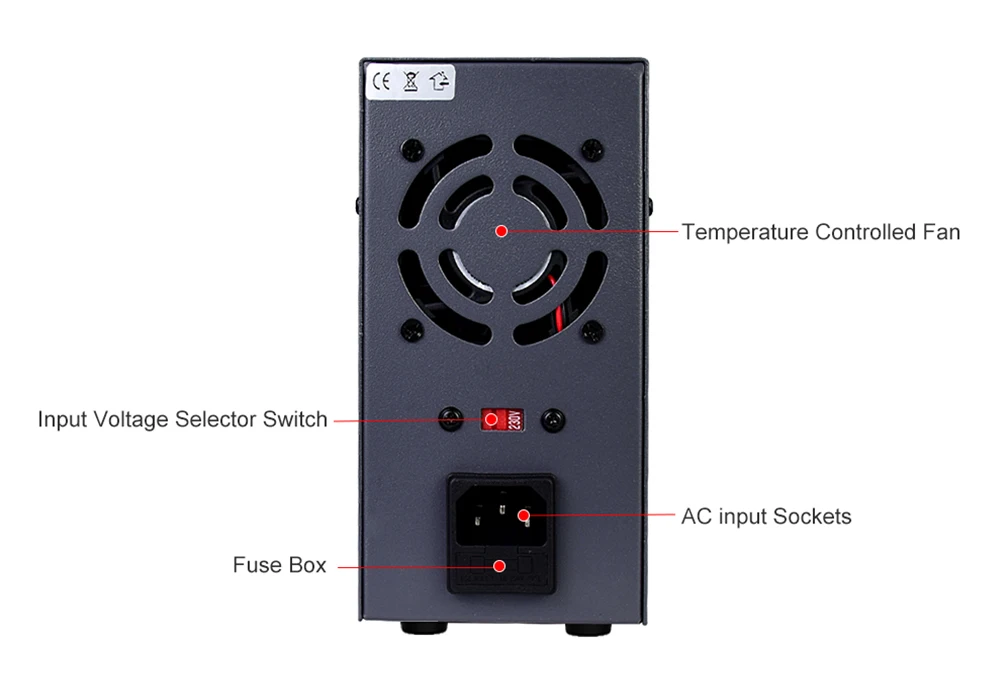

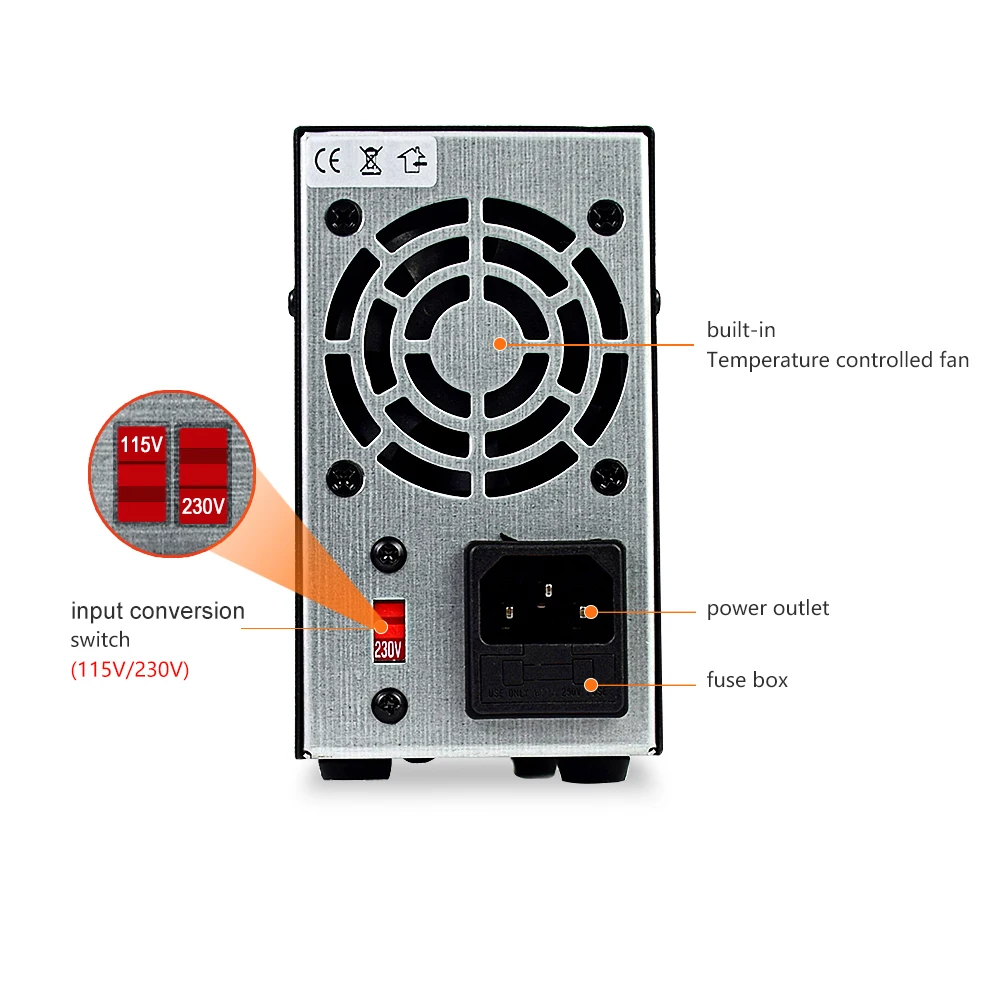

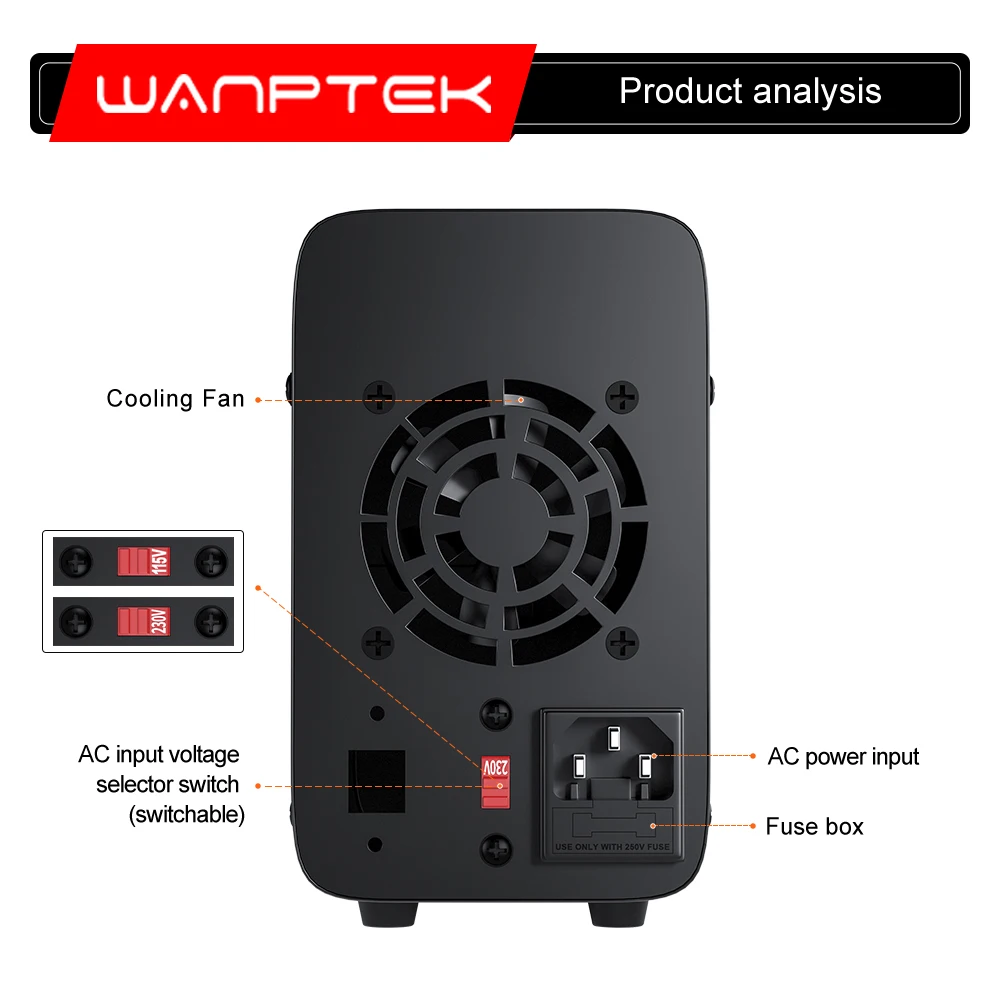

6.Temperature controlled fan heat dissipation, low noise, long life.

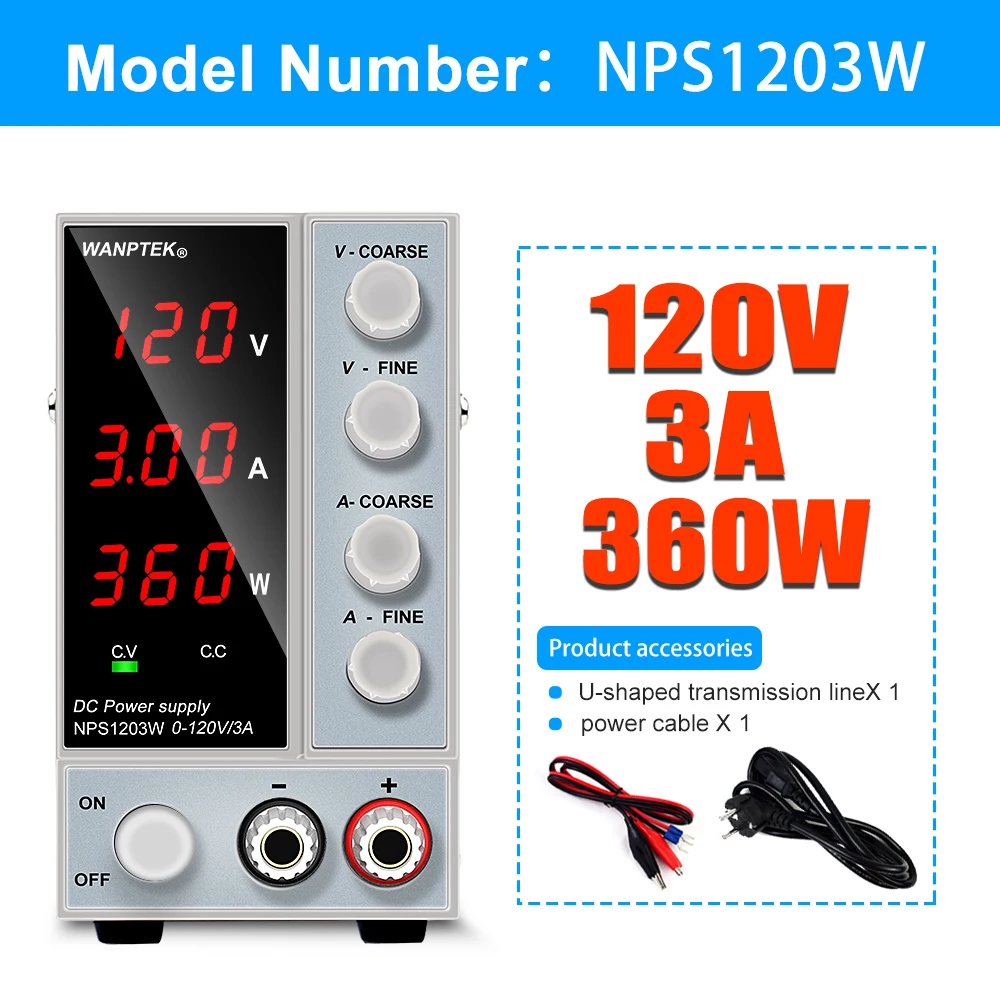

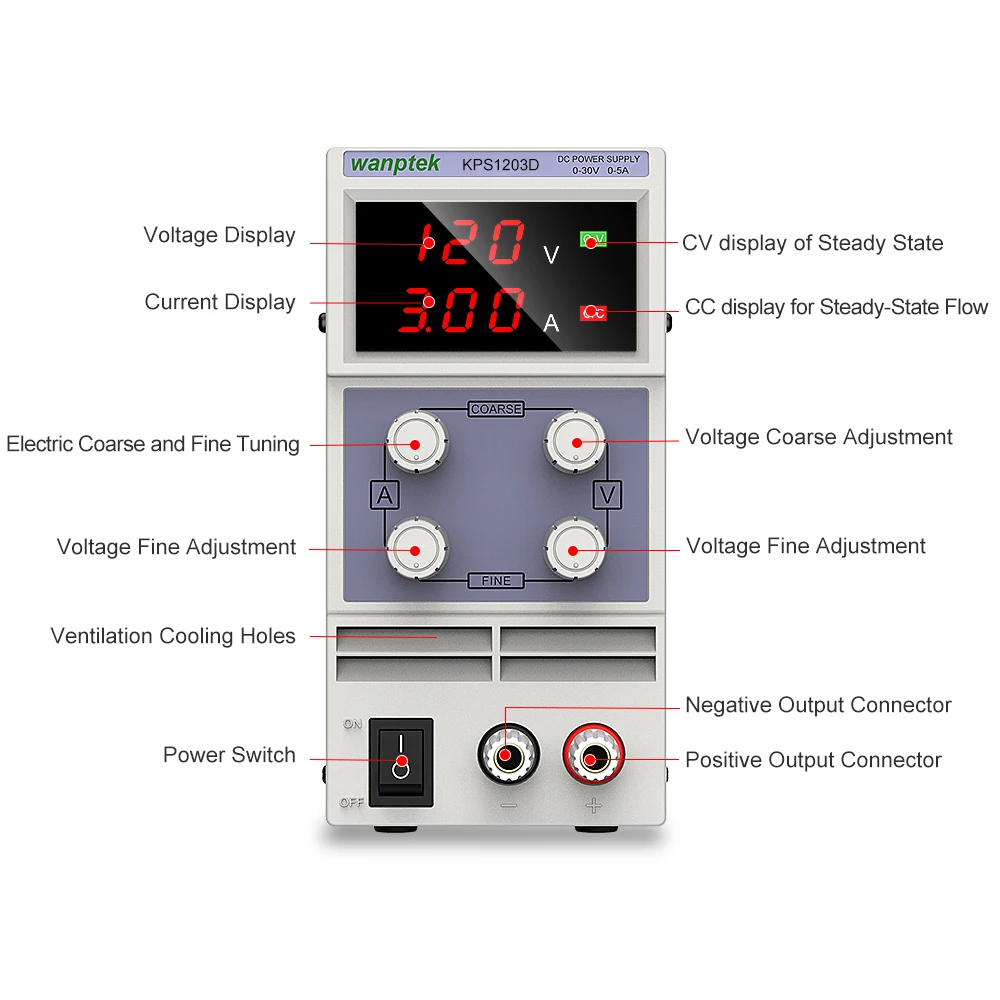

7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220v can work, rest assured to choose.
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 120V
Output current:0 ~ 3A
Voltage resolution:100mV/10mV（Optional）
Current resolution:10mA/1mA（Optional）
Output Voltage ranges from 0 to rating voltage with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
1. Production line test.
2. Mobile phone maintenance, computer maintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

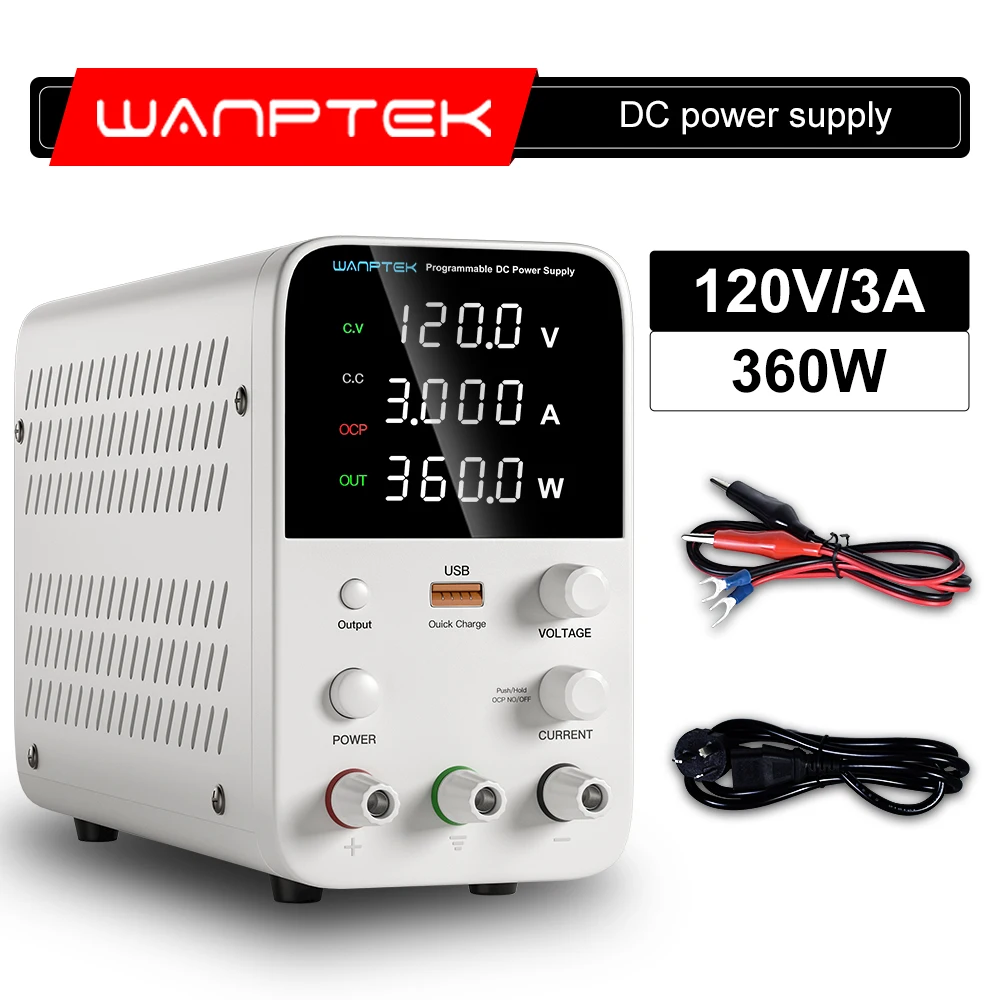

1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
