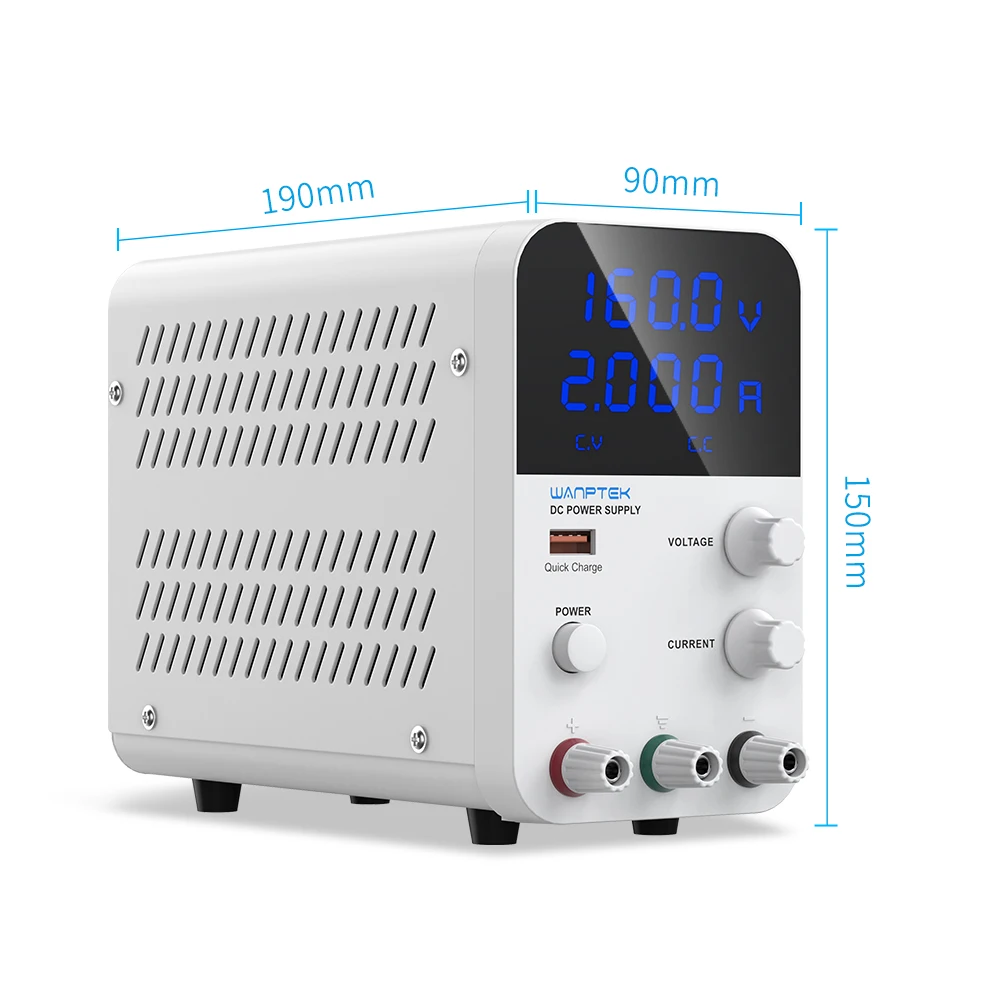

2023 Wanptek's new series products. This model is a miniature switching DC power supply.
Output Power |
320W |
Output voltage |
0~160V |
Output current |
0~2A |
working environment | |
input voltage:AC 230V/115V±10%;50Hz/60Hz |
|
Working temperature:0℃～40℃;relative humidity:<80%RH | |
Storage temperature:-10℃～70℃;relative humidity:<70%RH | |
Constant voltage CV | |
Voltage stability:0.1%±3mV |
|
Load stability: 0.2%±3mV | |
Ripple voltage:≤0.5% Vp-p | |
0 to rated voltage continuously adjustable | |
constant current CC | |
Current stability:0.1%±3mA |
|
Load stability: 0.2%±3mA | |
Ripple current:≤0.5% Vp-p | |
Recovery time:≤500μS | |
Temperature coefficient:≤100ppm/℃ | |
0 to rated current continuously adjustable | |

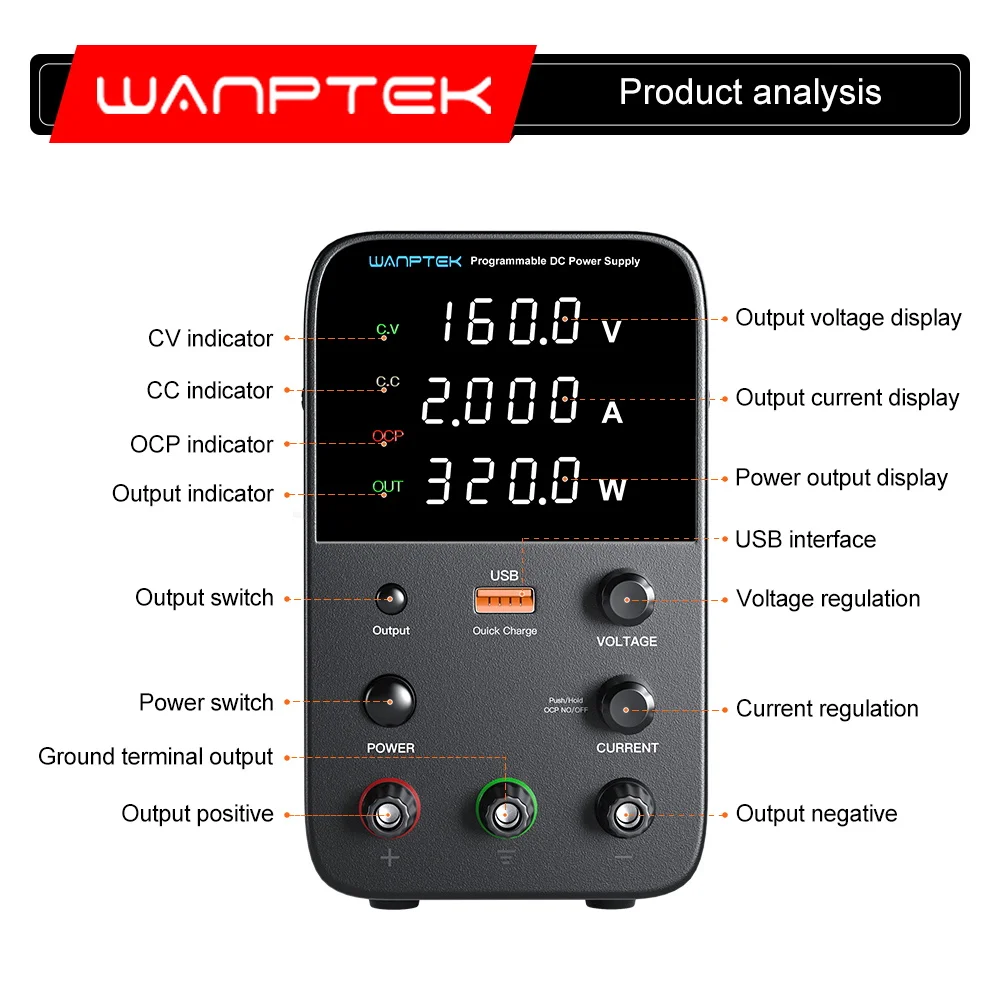

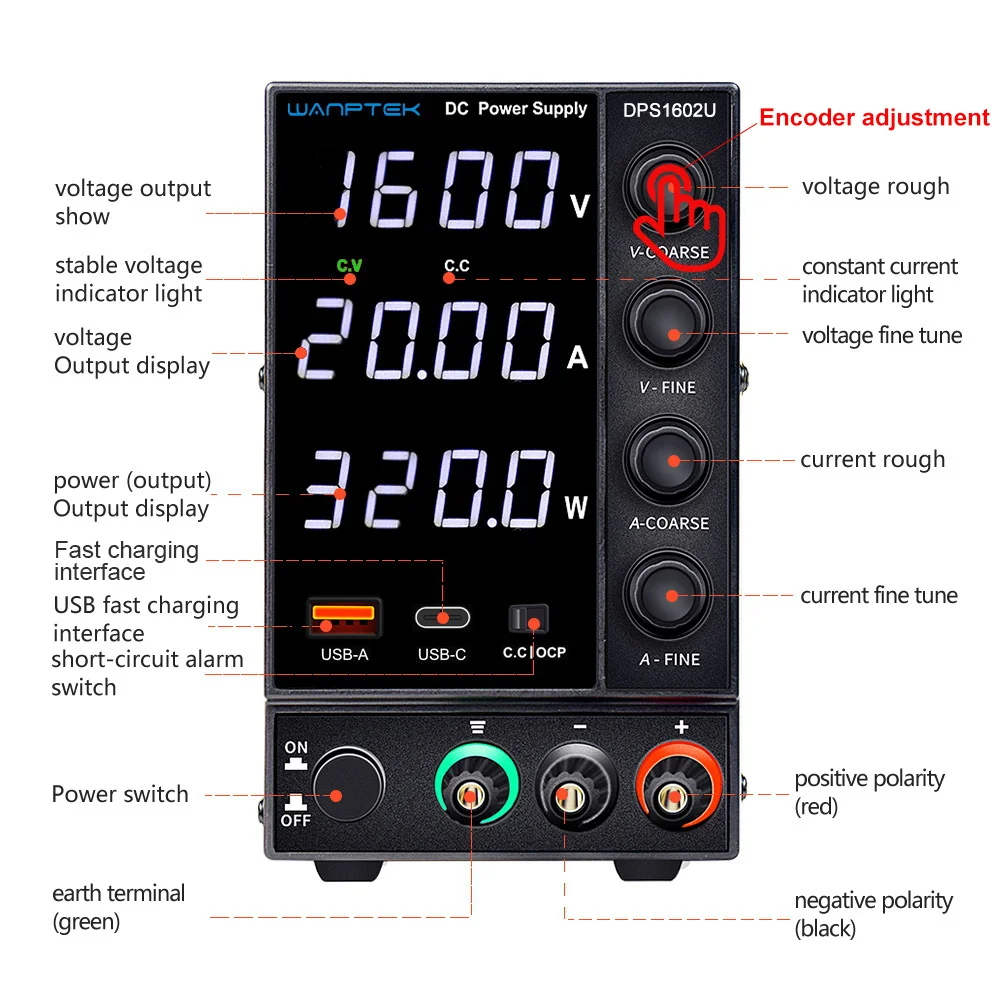

display | |
LED digit display |
|
Display accuracy:0.5%±digits | |
Display resolution: voltage 0.01V, current 0.001A, | |
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.
1x DC power supply
1x power cord (EU,US,UK,AU,we will send according to you country)
1x Test line
1x Instructions
